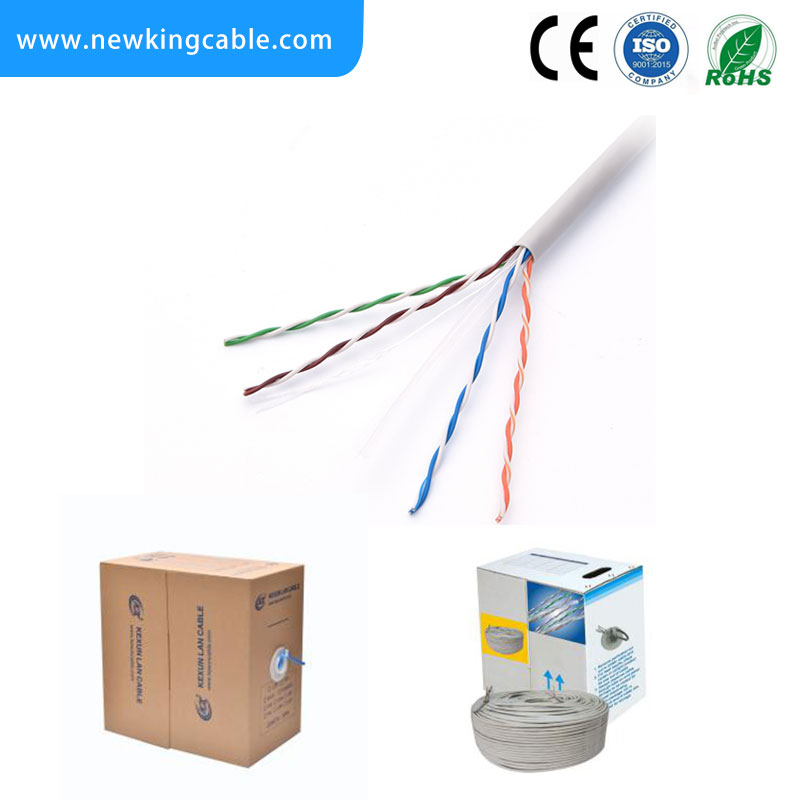

UTP CAT6 Ethernet Cable For Network


Place of Origin :  Foshan , China                                                                                   Brand Name : NEW KING

Model Number : UTP CAT6                                                                                           Certification : CE/RoHS,CPR

Type : Lan cable                                                                                                            Wire  Core Material: BC/CCA

Jacket: PVC/PE

Supply Ability

Supply Ability : 500 Million Meters per Year, 130 Million Meters per Day

Packaging & Delivery

Packaging Options:Wood reel, plastic reel, transparent film, carton, or customized.

Port :Foshan

Construction & Performance
Conductor 24AWG(Solid or Strand) CU/CCA/CCS
Insulation HDPE 0.90± 0.06mm
Cores/Pairs 4C*2
Sheath 5.20+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE
Mechanical Properties
Elongation Min. 300%
Temperature Range -20 up to +75° C
Tensile strength Min. 1.68Kg/mm
Electrical Properties (at20°C)
Conductor Resistance Max. 9.38 ohm/100m
Resistance Unbalance Max. 2%
Insulation Resistance 150 ohm/KM
Mutual Capacitance Max. 5600pF/100m
Cpacitance Unbalance Max. 330pF/100m
Impendance 100+/-15 ohm
Spark Test 2000V
Velocity Propagation 67%

All our products have got the certificates of international authority to guarantee

customers the high quality.

ISO9001:2015 - NK

ISO9001:2015 - NK



CPR Certificate - NK

CPR Certificate - NK

CE Certificate - NK

CE Certificate - NK

Options For The Shipping

We strictly undertake every step of shipping including loading, booking ships,

custom clearance and so on.

Empty Cupboard

Empty Container

A Third

A Third

One Half

One Half

Filled With

Fill Up

Close the Doorv

Close the Door

Add Seal

Affix Seal
