Foshan New King Cable Industrial Co., Ltd.
 |

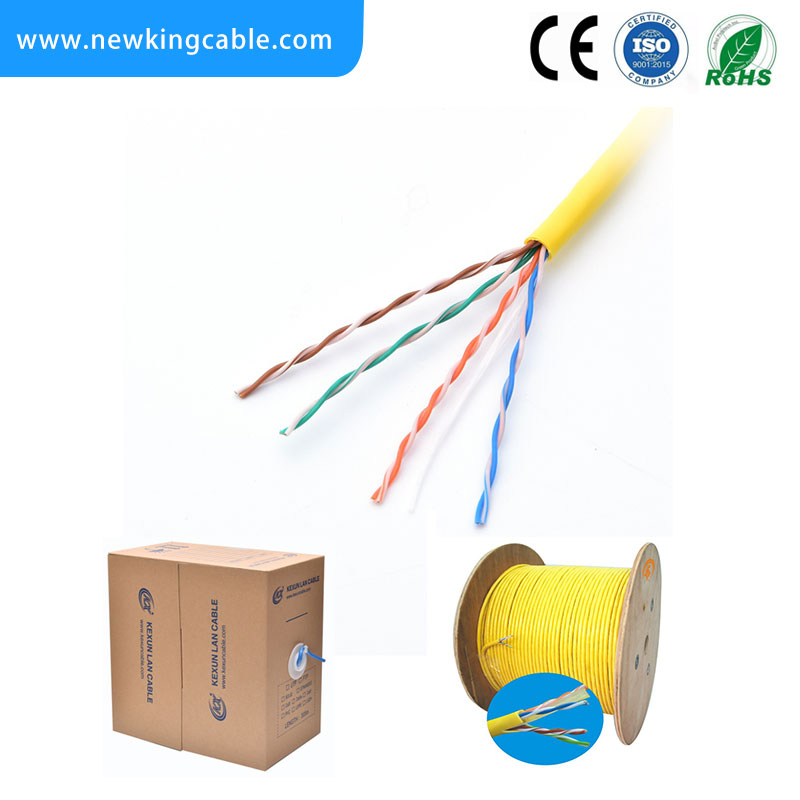

Type | UTP CAT5e Cable | |
Conductor | 24/25 AWG CU/CCA/CCAG | |
Insulation | Foam PE | |
Total number of insulated conductor | 8, twisted in 4 pairs | |
Color code | White-blue/blue, white-orange/orange, | |
Operating temperature | -20 ° C - +60 ° C | |
Drain wire | / | |
Sheath | PVC/PE/LSZH | |
Impedance 1.0-100.0MHz (ohms) | 100±15 | |
D. C, Resistance @20ºC(ohms/km) | ≤9.5 | |
D. C. Resistance Unbalance(%) | Max 2.5 | |
Insulation Resistance | >5000MΩ*KM | |
Rated Temperature | 70ºC | |
Frequency | Return loss | Attenuation | NEXT | FEXT |
1 | 20.00 | 2.10 | 64 | 63.8 |
4 | 23.01 | 4.30 | 55 | 51.7 |
10 | 25.00 | 6.60 | 49 | 43.8 |
16 | 25.00 | 8.20 | 46 | 39.7 |
20 | 25.00 | 9.20 | 44 | 37.7 |
31.25 | 23.64 | 11.80 | 42 | 33.8 |
62 | 21.54 | 17.10 | 37 | 27.6 |
100 | 20.11 | 22.00 | 34 | 23.6 |
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
