Foshan New King Cable Industrial Co., Ltd.
 |

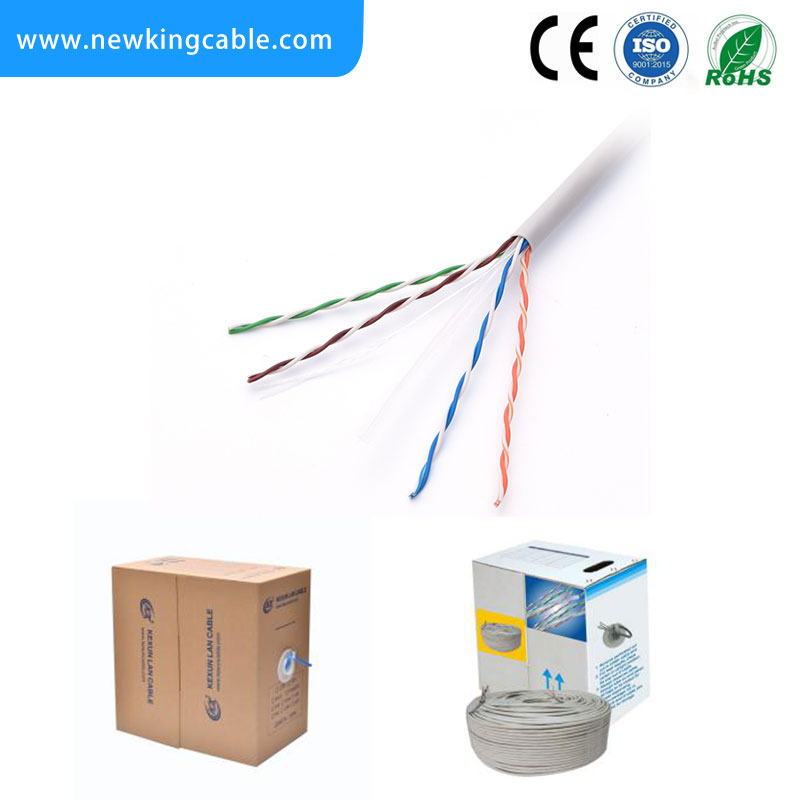

Place of Origin : Foshan , China Brand Name : NEW KING
Model Number : UTP CAT5 Certification : CE/RoHS,CPR
Type : Lan cable Wire Core Material: BC/CCA
Jacket: PVC/PE
Supply Ability : 500 Million Meters per Year, 130 Million Meters per Day
Packaging Options ：Wood reel, plastic reel, transparent film, carton, or customized.
Port ：Foshan
| Construction | |
| Conductor | 24AWG(Solid or Strand) CU/CCA/CCS |
| Insulation | HDPE 0.90± 0.06mm |
| Cores/Pairs | 4C*2 |
| Sheath | 5.20+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE |
| Mechanical Properties | |
| Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile strength | Min. 1.68Kg/mm |
| Electrical Properties (at20°C) | |
| Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Cpacitance Unbalance | Max. 330pF/100m |
| Impendance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity Propagation | 67% |
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
