Foshan New King Cable Industrial Co., Ltd.
 |

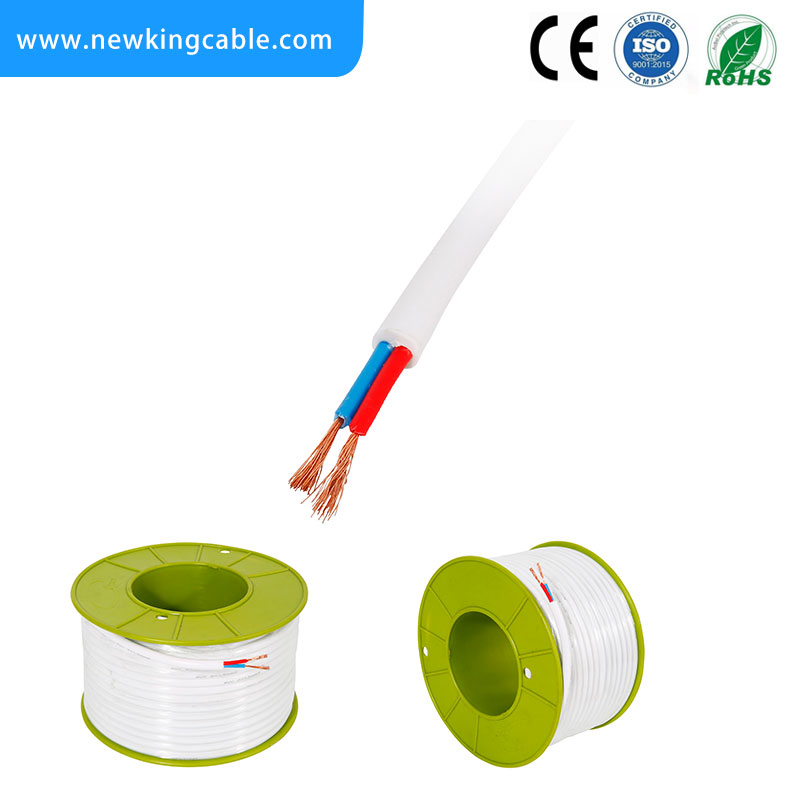

Model NO.: RVV Cable
Application: Local Communication Cable, Coaxial Cable, LAN Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PE/PVC
Type: Coaxial Cable
Material Shape: Round Wire
Conductor Type: Solid
Wire Core Material: Bare Copper Wire
Certification: CE, ISO, RoHS, CPR
Model: Rvv Cable
Brand: Kexun or Newking
Inner Conductor: CCS, Cu ,CCA,Tc,etc.
Insulation: PE,Foaming PE
Shield: Al Foil,Copper Foil
Braiding Material: Al, CCA,Cu, Tcu etc.
Braiding Coverage: 30%, 45%, 60%, 80%, 90% etc.
Jacket: PVC, PE
Color: White, Black, Yellow,Green etc.
Trademark: OEM
Transport Package: Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
Specification: Copper or Copper Clad Steel
Origin: Foshan, China
HS Code: 85442000
a)Using twisted Strands of plain copper wires as conductor
b)PVC Insulation
c)Rated voltageU0/U:300/300V
d)Maxiamum conductor temperature in normal use :70ºC.
| Specification | Quantity of Core | Nominal Area mm2 | Structure of Conductor No./¢ mm | Overall Diameter | Maximum Electrical Resistance at 20ºCΩ/km | Minimum Isulation Resistance at 70ºCΩ/km |
| RVV2×0.50 | 2 | 0.5 | 28/0.15 | 5.30 | 39.0 | 0.012 |
| RVV 3×0.50 | 3 | 0.5 | 28/0.15 | 5.60 | 39.0 | 0.012 |
| RVV 4×0.75 | 4 | 0.75 | 24/0.20 | 7.3 | 26.0 | 0.011 |
| RVB 5×1.0 | 5 | 1.0 | 32/0.20 | 8.5 | 19.5 | 0.010 |
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
