Foshan New King Cable Industrial Co., Ltd.
 |
| Constrution | Material | Diameter(mm) |
| 1.Conductor | Bare copper | 0.51±0.005 |
| 2.Insulation | High-density polyethylene | 0.93±0.020 |
| 3.Rip cord | nylon | 300D |
| 4.Jacket | LSZH | 5.50±0.20 |
| Elongation | Min.300% |
| Temperature Range | -20 Up to +75ºC |
| Tensile Strength | Min1.68KG/mm2 |
| Conductor Resistance | Max.9.38 ohm/100m |
| Resistance Unbalance | Max.2.5% |
| Insulation Resistance | 5000 ohm/KM |
| Mutual Capacitanue | Max.5600pF/100m |
| Capacitanue Unbalance | Max.330pF/100m |
| Impedance | 100±15 ohm |
| Spark Test | 2.0KV |
| Velocity of Propagation | 69% |
| Frequency MHZ | Attenuation (dB/100M) | RL (dB) | Next (dB) | ELFEXT (dB/100M) |
| 1MHZ | 2.1 | 15 | 62 | 61 |
| 4MHZ | 4.3 | 15 | 52 | 49 |
| 8MHZ | 6 | 15 | 48 | 47 |
| 10MHZ | 6.9 | 17 | 46 | 41 |
| 16MHZ | 8.9 | 17 | 43 | 37 |
| 20MHZ | 10.0 | 17 | 42 | 35 |
| 25MHZ | 11.1 | 21 | 41 | 34 |
| 31.3MHZ | 12.4 | 20 | 39 | 31 |
| 62.5MHZ | 17.7 | 19 | 34 | 25 |
| 100MHZ | 23.4 | 17 | 31 | 21 |
Note:Any packing available according to your request.
(1)75ohm Series Coaxial Cable Specifications: RG6,RG,59,RG7,RG11
(2)50ohm Series Coaxial Cable Specification:
RG58,RG8,RG213,3D-FB,5D-FB,7D-FB,8D-FB,PLMR-200,
PLMR-240, PLMR-300, PLMR-400
(3)Monitor Cable:RG59+2DC,RG6+2DC
(4)Security Cable:RVB,RVV

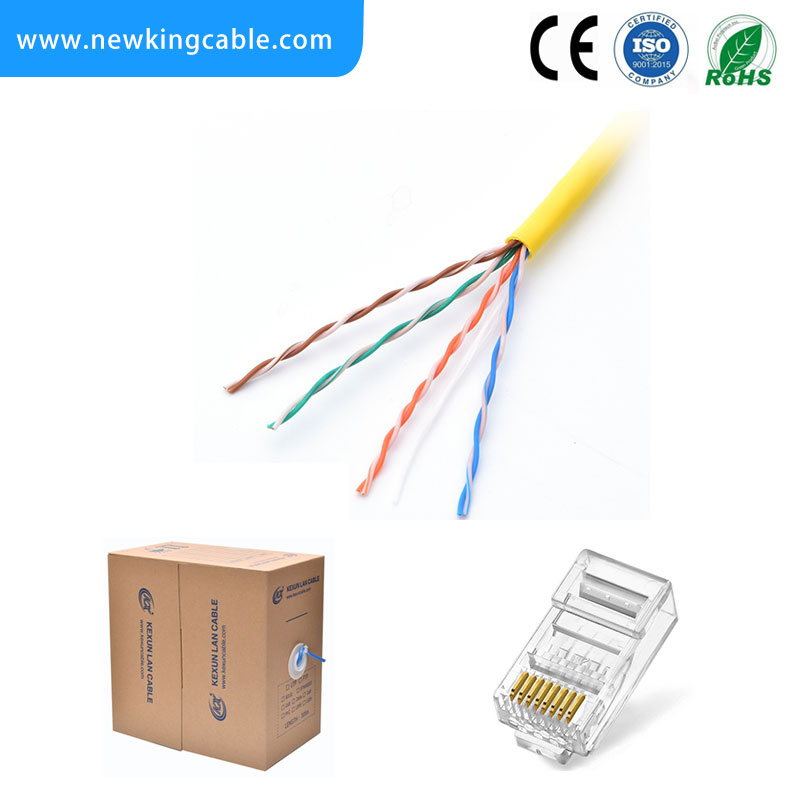

(5)Lan Cable:UTP/FTP CAT5,CAT5e, UTP/FTP CAT6,CAT6e
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
