Buy RG6 Quad Shield Coaxial Cable With Factory Price

Availability:


Inquire

Product Description

Overview

Application:
Used as a distribution cable for Outdoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Coaxial Cable		TYPE:	RG6Quad Shield-60%

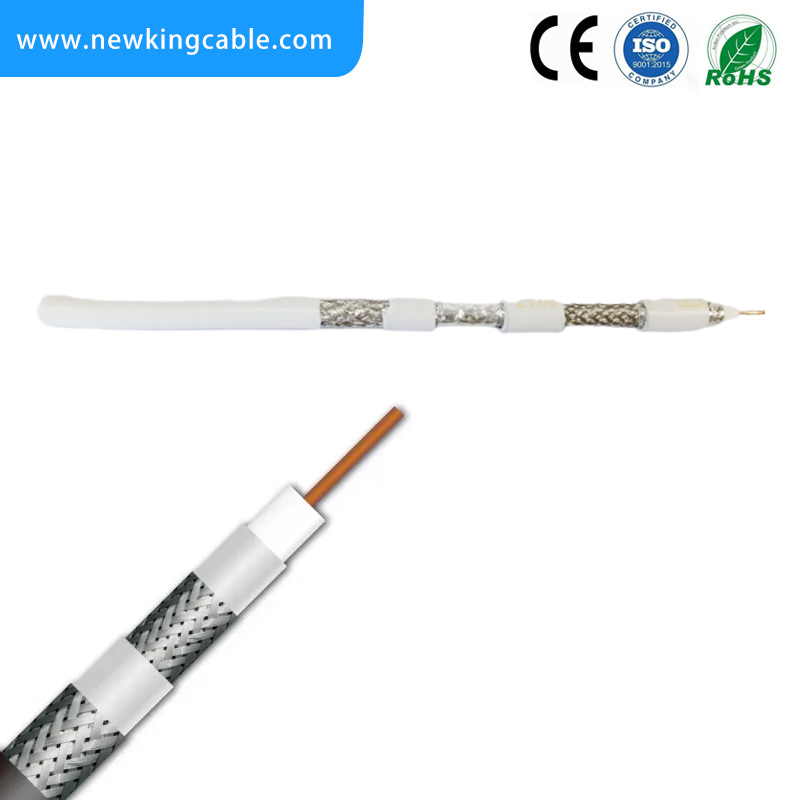

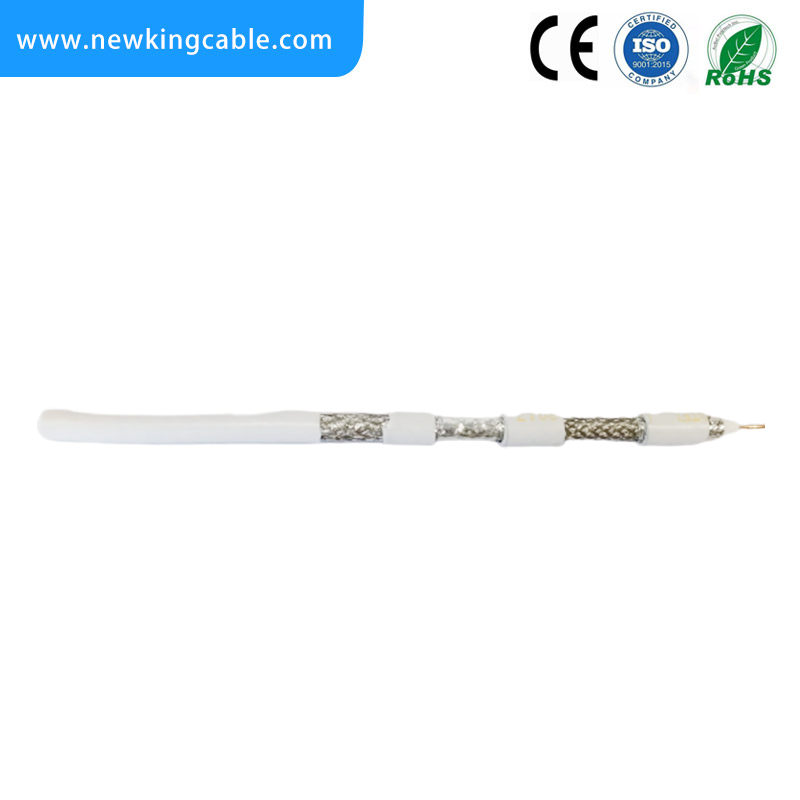

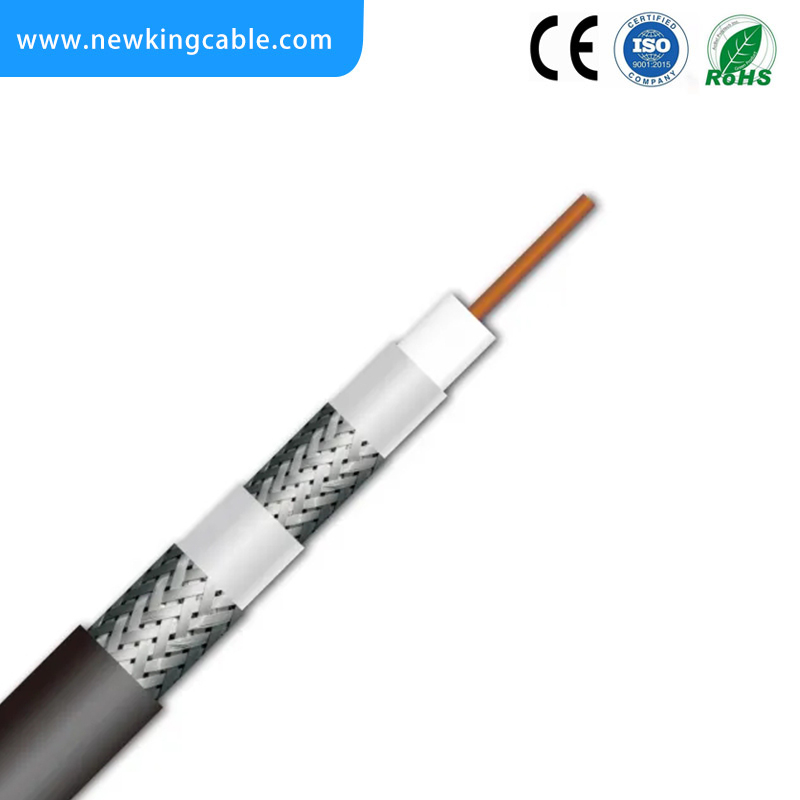

Construction
Item	Material			Diameter(mm)
Center Conductor	Copper Clad Steel/BC			1.02
Dielectric	Foam PE			4.57
1st Shield	Bonded Aluminum Foil			4.75
2nd Shield	Aluminum Wire Braiding 60%			/
3rd Shield	Aluminum Foil			/
4th Shield	Aluminum Wire Braiding 40%			/
Jacket	PVC			7.36
Electrical Charateristics
Impedance(Ω)				75±3
Capacitance(pF/m)				52±2
Velocity of Propagation(%)				85.0
Shielding Effectiveness
5-1000MHZ(dB)				≥95%
Return Loss
5-1000MHZ(dB)				≥22
1000-2000MHZ(dB)				≥20

Attenuation
Frequency(Mhz)	Max Attenuation(dB/100ft)			Max Attenuation(dB/100m)
5	0.58			1.90
55	1.60			5.25
187	2.85			9.35
211	3.05			10.00
400	4.15			13.61
500	4.66			15.29
750	5.65			18.54
865	6.10			20.01
1000	6.55			21.49
1500	8.20			26.80
1800	8.80			28.90
2200	9.80			32.20
3000	11.50			37.60
