Foshan New King Cable Industrial Co., Ltd.
 |

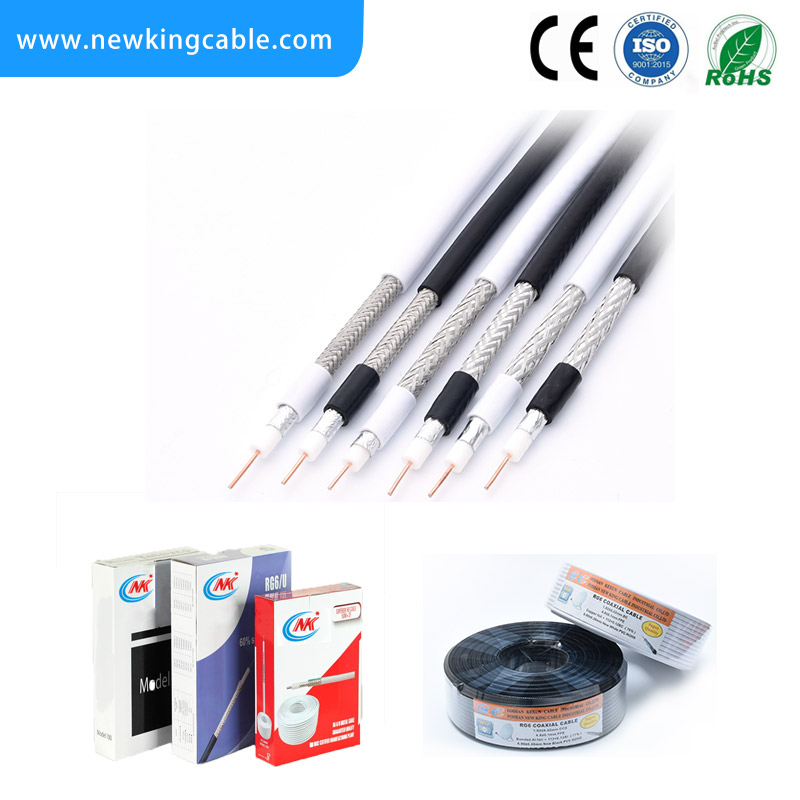

Place of Origin: Foshan, China Brand Name: NEW KING
Model Number: RG6 Coaxial Cable Number of Conductors: 1
Type: Coaxial Cable Model: RG6
Certification: CE/RoHS Inner Conductor: 1.02 Bare Copper / CCS
Dielectric: 4.57- 4.80mm FPE Outer Conductor: Al Foil +70%, 90%, 95% Braid
Braiding Material: Al-Mg, CCA, BC, TC Outer Jacket: 6.80 - 7.0mm PVC/PE
Color: White, Black or Customized Connector: F-connecor or BNC
Annual Output: 500 Million Meters
Daily Output: 130 Million Meters
Packaging Details ：Can be packed with film, reels, o rolls in cartons.
Port ：Foshan
| Construction | Conductor | Material | Copper Clad Steel |
| Diameter(mm) | 1.0±0.02 | ||
| Insulation | Material | Foaming PE | |
| Diameter(mm) | 4.80±0.10 | ||
| Outer Shield | Material | AL foil+AL/mg wire braiding | |
| Density | 61% | ||
| Diameter(mm) | 5.40±0.10 | ||
| Performance | Minimum Bending Radius | mm | 34(indoor) |
| Minimum Bending Temperature | ℃ | -10 | |
| Storage Temperature | ℃ | -10~＋75 | |
| Installation Temperature | ℃ | -10~＋50 | |
| Operating Temperature | ℃ | -10~＋75 |
| Capacitance | pF/m | 45±2 |
| Velocity | % | 86 |
| Insulation Resistance | MΩ·km | >5000 |
| Cut-off Frequency | GHz | 3.0 |
| Insulation withstand Voltage | KV | 1.0 |
| Jacket Spark Voltage | KV | 2.0 |
| Attenuation (dB/100m) | 50MHz | ≤9.0 |
| 100MHz | ≤10.8 | |
| 200MHz | ≤11.8 | |
| 800MHz | ≤19.00 | |
| 1000MHz | ≤20.0 | |
| Shielding Effectiveness (dB) | 55MHz | ≥55 |
| 300MHz | ≥60 | |
| 1000MHz | ≥65 | |
| Return Loss (dB) | 5~470MHz | ≥20 |
| 470~862MHz | ≥20 | |
| 862~2200MHz | ≥18 |
All our products have got the certificates of international authority to guarantee customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships, custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
