RG6+2DC For Security Cameras

Availability:


Inquire

Product Description

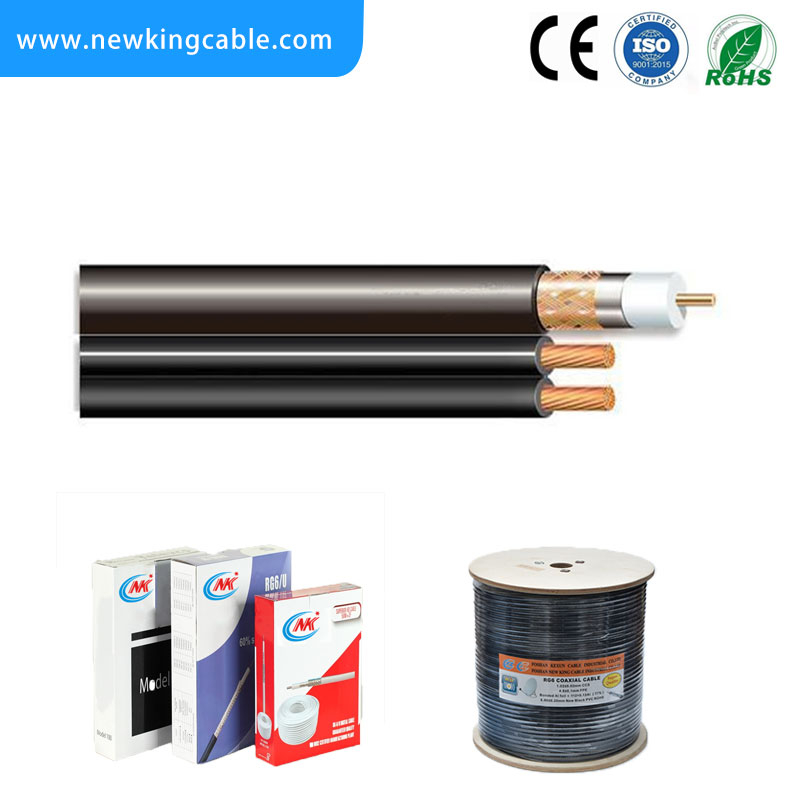

RG6 + 2DC Coaxial Cable (with Power Cable)

Construction

(1)Center Conductor: 1.02±0.01mm BC

(2)Dielectric: 4.57±0.10mm FPE

(3)Braid: Al Foil + 64*0.12mm Al/Mg

(4)Jacket: 6.80±0.20mm PVC

(5)Power cable: 15*0.23CCA 1.70PE

Options

Inner Conductor:	BC/CCS/CCA/TC/SC Available
Dielectric:	Foam PE/Solid PE
First Shield:	Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored )
Second Shield:	Al,CCA,BC,TC CCS Available Wire Diameter:0.11,0.12,0.15,0.16mm Available Braiding Net:32#,48#,64#,80#,96#,112#,128#,144#
Jacket:	PVC/PE (black,white,color)

Characteristics

Impedance:	75+3 Ohm
Capacitance:	53+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

Attenuation

Frequency (MHz)	Maximum (dB/100 m)
5	1.90
55	5.25
187	9.35
350	12.63
550	16.08
750	18.54
865	20.01
1000	21.49
1450	26.37
1800	30.34
2000	31.82

Tips

BC: Bare Copper

CCS: Copper Clad Steel

CCA: Copper Clad Aluminum

TC : Tinning Copper

SC: Silver-Plated Copper

Any specification can be designed according to your requirement.

Our Packing

(1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m)
(2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box
(3)Outer Packing: Carton box, pully box, pallet available

Any packing available according to your request.

Our main product

75ohm Series Coaxial Cable Specifications: RG6,RG,59,RG7,RG11

50ohm Series Coaxial Cable Specification: RG58,RG8,RG213,3D-FB,5D-FB,7D-FB,8D-FB,PLMR-200,

PLMR-240, PLMR-300, PLMR-400

Monitor Cable: RG59+2DC,RG6+2DC

Security Cable: RVB,RVV

Lan Cable: UTP/FTP CAT5,CAT5e, UTP/FTP CAT6,CAT6e

Certificates

All our products have got the certificates of international authority to guarantee

customers the high quality.
