Foshan New King Cable Industrial Co., Ltd.
 |
Place of Origin : Foshan, China Brand Name : NEW KING OR OEM
Model Number : RG59+2DC Number of Conductors : 1

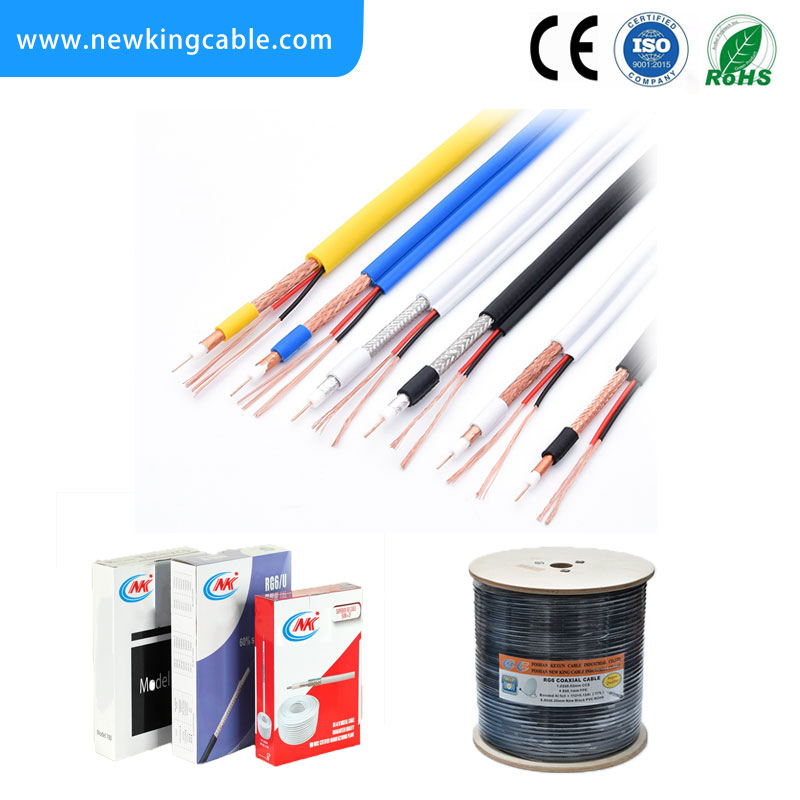

Type : Coaxial Model : RG59+2DC Camera Cable
Certification : CE/RoHS Inner Conductor : 0.81+/-0.02 Bare Copper / CCS
Dielectric : 3.80- 3.90mm FPE Braid Coverage: Al Foil +70%, 90%, 95% Braid
Braid Material : Al-Mg, CCA, BC, TC Out Jacket : PVC/PE
Color : White, Black or Customized Diameter(mm):6.10+4.50
Power Cable Conductor(mm):15*0.23CCA or 7*0.37CCA
Power Cable Insulation(mm):1.70PE
Our factory has supper cable Equipments to improve ability.
Our Supply Ability is 500 Million Meters per Year, that is 130 Million Meters per Day.
Packaging Options ：Wood reel, plastic reel, transparent film, carton, or customized.
Port ：Foshan, Shenzhen, Guangzhou
| Construction | Conductor | Material | Copper Clad Steel |
| Diameter(mm) | 0.81±0.02 | ||
| Insulation | Material | Foaming PE | |
| Diameter(mm) | 3.66±0.10 | ||
| Outer Shield | Material | AL foil+AL/mg wire braiding | |
| Density | 61% | ||
| Diameter(mm) | 6.10+4.50 | ||
| Power Cable | Conductor(mm) | 15*0.23CCA or 7*0.37CCA | |
| Insulation(mm) | 1.70PE | ||
| Performance | Minimum Bending Radius | mm | 34(indoor) |
| Minimum Bending Temperature | ℃ | -10 | |
| Storage Temperature | ℃ | -10~＋75 | |
| Installation Temperature | ℃ | -10~＋50 | |
| Operating Temperature | ℃ | -10~＋75 |
| Capacitance | pF/m | 53 |
| Velocity | % | 86 |
| Insulation Resistance | MΩ·km | >5000 |
| Cut-off Frequency | GHz | 3.0 |
| Insulation withstand Voltage | KV | 1.0 |
| Jacket Spark Voltage | KV | 2.0 |
| Attenuation (dB/100m) | 50MHz | ≤9.0 |
| 100MHz | ≤10.8 | |
| 200MHz | ≤11.8 | |
| 800MHz | ≤19.00 | |
| 1000MHz | ≤20.0 | |
| Shielding Effectiveness (dB) | 55MHz | ≥55 |
| 300MHz | ≥60 | |
| 1000MHz | ≥65 | |
| Return Loss (dB) | 5~470MHz | ≥20 |
| 470~862MHz | ≥20 | |
| 862~2200MHz | ≥18 |
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
