Foshan New King Cable Industrial Co., Ltd.
 |

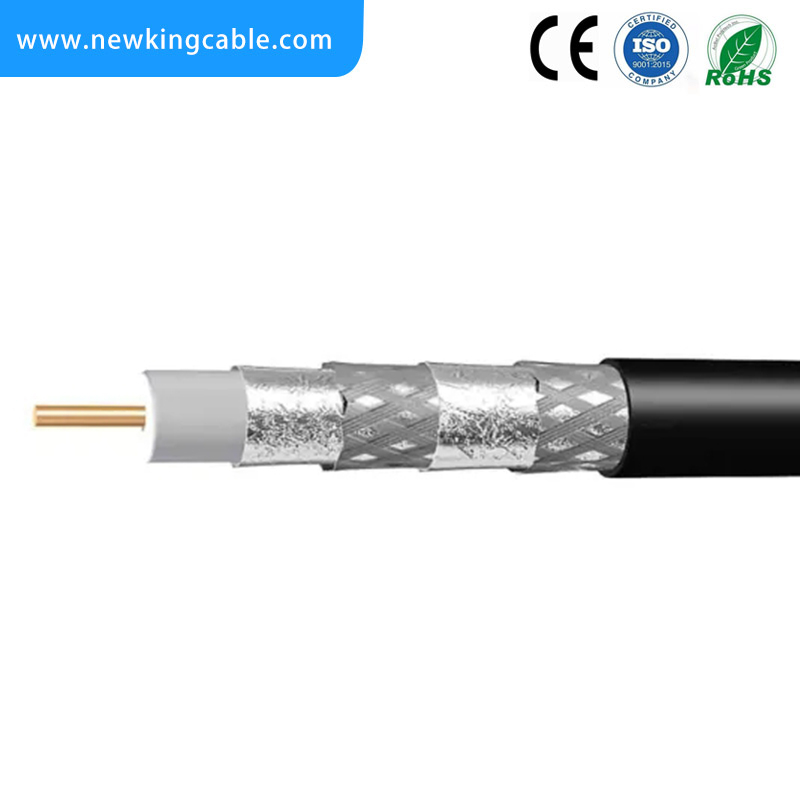

Product Description:
Conductor: Solid Copper Clad Steel (CCS) or Annealed Copper (CU)
Insulation: Foam Polyethylene
Shield: Aluminum,Tinned Copper,Bare Copper
Jacket: PVC,UV-Proof PVC, PE
Packaging: Please contact us for various packaging.
Applications:Suitable for RF Signal Transmission, MATV, CATV, CCTV,Digital Video, Local Area Network,Drop Cable,Direct Broadcast Satellite.
Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)
Dielectric:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 7.11 mm
SHIELD:
1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0.16 mm ALUMINUM BRAID WIRE 60% COVERAGE
JACKET:
PE JACKET(FLOODED FOR UNDERGROUND)
NOMINAL DIAMETER OVER JACKET: 10.16 mm
NOMINAL JACKET THICKNESS: 1.07 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
Frequency:
Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5MHz | 0.38dB | 1.80dB |
55MHz | 0.96dB | 3.15dB |
83MHz | 1.18dB | 3.87dB |
187MHz | 1.75dB | 5.74dB |
211MHz | 1.90dB | 6.23dB |
250MHz | 2.15dB | 6.72dB |
300MHz | 2.25dB | 7.38dB |
350MHz | 2.42dB | 7.94dB |
400MHz | 2.60dB | 8.53dB |
450MHz | 2.75dB | 9.02dB |
500MHz | 2.90dB | 9.51dB |
550MHz | 3.04dB | 9.97dB |
600MHz | 3.18dB | 10.43dB |
750MHz | 3.65dB | 11.97dB |
865MHz | 3.98dB | 13.05dB |
1000MHz | 4.35dB | 14.27dB |
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
