Foshan New King Cable Industrial Co., Ltd.
 |

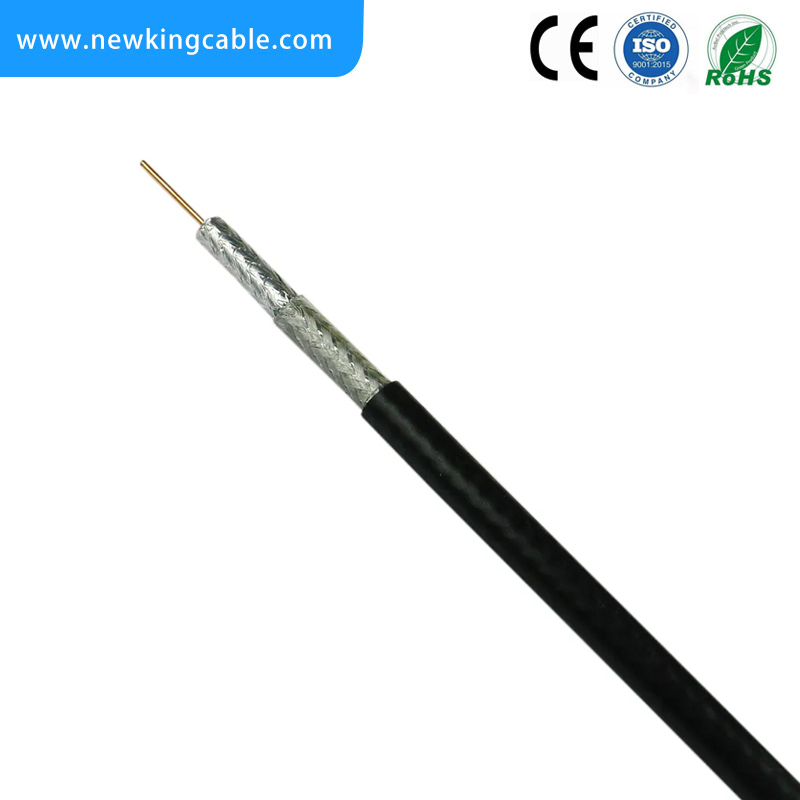

RG11 Quad Shield | |||
Construction | |||
Item | Material | Diameter(mm) | |
Inner Conductor | Bare Copper / Copper Clad Steel | 1.63 | |
Dielectric | Foam PE | 7.11 | |
First Shield | Boned Aluminum Foil | 7.30 | |
Seond Shield | AL-Mg Wire Braid | 8.00 | |
Third Shield | Aluminum Foil | 8.15 | |
Fourth Shield | AL-Mg Wire Braid | 8.70 | |
Jacket | PVC/ PE | 10.16 | |
Electrical Characteristics | Attenuation @20ºC (dB/100M) | ||
Impedance(Ω) | 75 | @300MHz | 7.38 |
Velocity of Propagation(%) | 84.0 | @400MHz | 8.53 |
Return Loss(dB) | ≥20 | @500MHz | 9.51 |
Capacitance | 54 | @600MHz | 10.43 |
Shielding Effectiveness(dB) | ≥90 | @865MHz | 13.05 |
Operating Temperature(ºC) | -25 to +70 | @1000MHz | 14.27 |
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
