Foshan New King Cable Industrial Co., Ltd.
 |

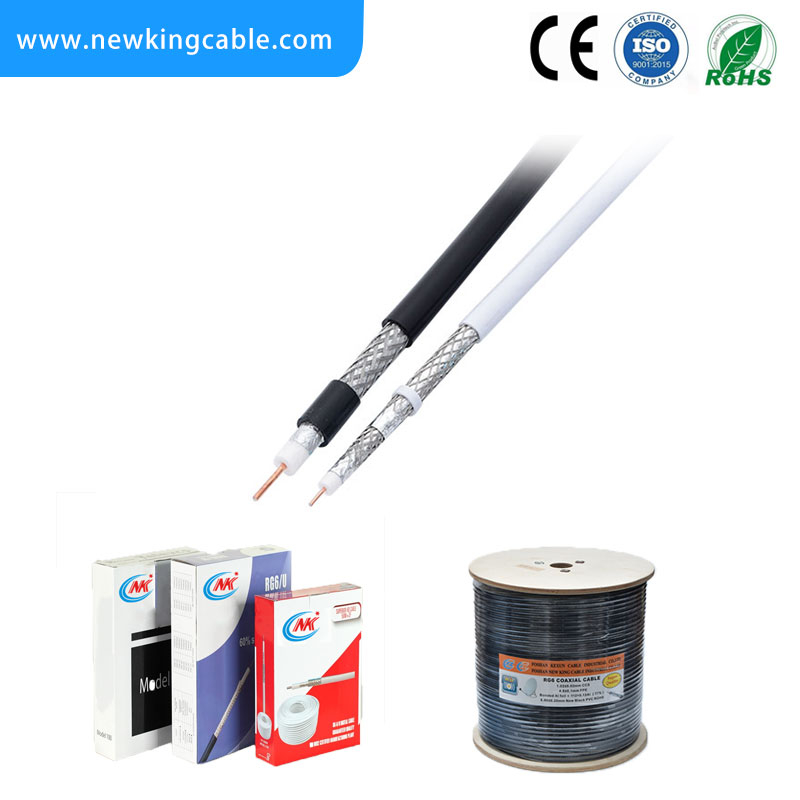

Place of Origin : Foshan, China Brand Name : NEW KING OR OEM
Model Number : RG11 Number of Conductors : 1
Type :Trunk Cable Model : RG11 Trunk Cable
Certification : CE/RoHS Inner Conductor : 1.63+/-0.02 Bare Copper / CCS
Dielectric : FPE Out Conductor : Al Foil +70%, 90%, 95% Braid
Braid Material : Al-Mg, CCA, BC, TC Out Jacket : 10.0+3.1mm PVC/PE
Color : White, Black or Customized Steel:1.83mm
Supply Ability : 500 Million Meters per Year, 130 Million Meters per Day
Packaging Details ：Can be packed in clarity film, several rolls into one carton.
Port ：Foshan
| Construction | Conductor | Material | Copper Clad Steel |
| Diameter(mm) | 1.63±0.02 | ||
| Insulation | Material | Foaming PE | |
| Diameter(mm) | 7.11±0.10 | ||
| Outer Shield | Material | AL foil+AL/mg wire braiding | |
| Density | 61% | ||
| Diameter(mm) | 10.00+3.10 | ||
| Performance | Minimum Bending Radius | mm | 34(indoor) |
| Minimum Bending Temperature | ℃ | -20 | |
| Storage Temperature | ℃ | -20~＋70 | |
| Installation Temperature | ℃ | -20~＋50 | |
| Operating Temperature | ℃ | -20~＋75 |
| Capacitance | pF/m | 53±2 |
| Velocity | % | 86 |
| Insulation Resistance | MΩ·km | >5000 |
| Cut-off Frequency | GHz | 3.0 |
| Insulation withstand Voltage | KV | 1.0 |
| Jacket Spark Voltage | KV | 2.0 |
| Attenuation (dB/100m) | 50MHz | ≤9.0 |
| 100MHz | ≤10.8 | |
| 200MHz | ≤11.8 | |
| 800MHz | ≤19.00 | |
| 1000MHz | ≤20.0 | |
| Shielding Effectiveness (dB) | 55MHz | ≥55 |
| 300MHz | ≥60 | |
| 1000MHz | ≥65 | |
| Return Loss (dB) | 5~470MHz | ≥20 |
| 470~862MHz | ≥20 | |
| 862~2200MHz | ≥18 |
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
