Foshan New King Cable Industrial Co., Ltd.
 |

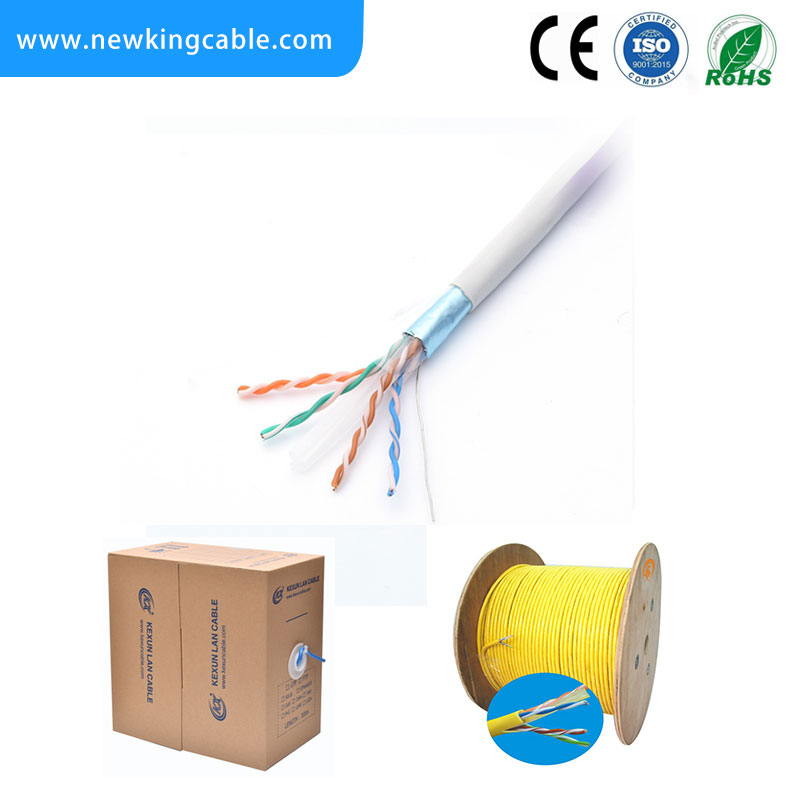

Component
1. 4pairs x 0.50mm BC/CCS/CCA conductor
2. 0.90mm PE insulation
3. Aluminum foil + 0.50mm BC/CCS/CCA drain wire
4. 5.20mm PVC jacket
Note: Cable specification can be customized according to customers' requirements
Part Number | Utp cat5e | Utp cat6 | FTP CAT.5E | |
Conductor | Diameter | 0.51±0.01 | 0.574±0.01 | 0.515±0.01 |
Material | Bare Copper | Bare copper | Bare copper | |
Type | Solid | Solid | Solid | |
Dielectric(Insulation) | Diameter | 0.91±0.01 | 1.04±0.01 | 0.93±0.01 |
Material | Solid PE | Solid PE | Solid PE | |
Shielding | Material | - | Aluminium foil Tinned copper drain wire | |
Coverage | - | - | 100% | |
Jacket(sheath) | Diameter | 5.1±0.1 | 6.3±0.01 | 5.5±0.01 |
Material | Flame retardant PVC | Flame retardant PVC | Flame retardant PVC | |
colors | Pair 1 : Blue,White / Blue | Pair 1 : Blue,White / Blue | Pair 1 : Blue,White / Blue | |
Number of Pairs | 4pairs | 4pairs | 4pairs | |
Weight (kgs/km) | 30 | 40 | 35 | |
Attenuation(10MHz dB/100m) | 6.5 | 5.6 | 6.5 | |
NEXT (100MHz dB/100m) | ≥35.3 | ≥38.3 | ≥35.3 | |
ELFEXT (100MHz dB/100m) | ≥23.8 | ≥19.8 | ≥23.8 | |
RL (100MHz dB/100m) | ≥20.1 | ≥17.3 | ≥20.1 | |
Impedance (ohms ) | 100 | 100 | 100 | |
Operating Temperature Range(°C) | -20 to 75 | -20 to 75 | -20 to 75 | |
package | 305meters/roll | 305meters/roll | 305meters/roll | |
Frequency | | | | |
NEXT | ELFEXT | |||
0.77 | 1.80 | NA | 70.00 | 69.00 |
1) Packing Lengths: 200m/roll, 305m/roll,1000m/drum,Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel available.
3) Outer packing: Cardboard box, pallet customers'request available.
4) Other packing available according to client's request
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
