Foshan New King Cable Industrial Co., Ltd.
 |

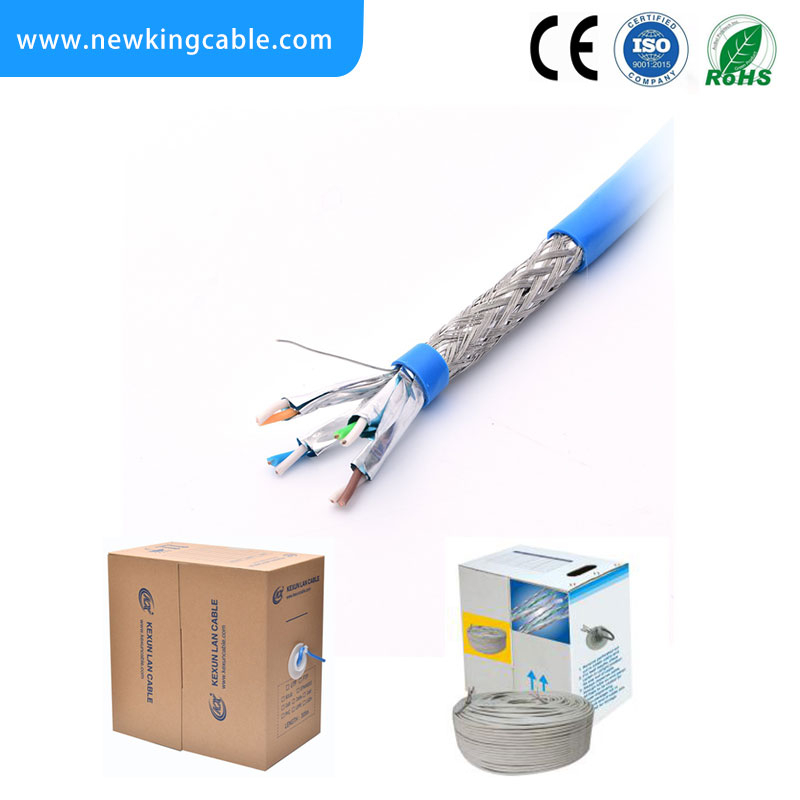

Model NO.: Cat 5 lan cable
Conductor Material: BC/CCS/CCA/TC
Cover Material: PVC
Wire Core Material: Bare Copper Wire/Copper Clad Steel Wire
Certification: CE, ISO, RoHS, CPR
Brand: Kexun or Newking
Conductor: 8 Core 4 Pairs
Insulation: HDPE
Ripcord: 630d
Package: 305m/Pully Box, 2pull Box/CTN
Color: Grey,Blue,Black,Yellow,Red etc.
Package: Wooden Spool,Plastic Reel,Gift Box,Pully Box
Specification: 4X2X24AWG CCA/BC
Origin: Foshan China
| Constrution | Material | Diameter(mm) |
| 1.Conductor | Bare copper | 0.50±0.005 |
| 2.Insulation | High-density polyethylene | 0.89±0.020 |
| 3.Rip cord | nylon | 300D |
| 4.Jacket | PVC | 5.0±0.20 |
| Elongation | Min.300% |
| Temperature Range | -20 Up to +75ºC |
| Tensile Strength | Min1.68KG/mm2 |
| Conductor Resistance | Max.6.5 ohm/100m |
| Resistance Unbalance | Max.2% |
| Insulation Resistance | 5000 ohm/KM |
| Mutual Capacitanue | Max.5600pF/100m |
| Capacitanue Unbalance | Max.330pF/100m |
| Impedance | 100±15 ohm |
| Spark Test | 2.0KV |
| Velocity of Propagation | 67% |
| Frequency MHZ | Attenuation (dB/100M) | RL (dB) | Next (dB) | ELFEXT (dB/100M) |
| 1MHZ | 2 | 20 | 65.3 | 64 |
| 4MHZ | 4.1 | 23 | 56.3 | 52 |
| 8MHZ | 5.8 | 24.5 | 52.4 | 48 |
| 10MHZ | 6.6 | 25 | 51.3 | 44 |
| 16MHZ | 8.2 | 25 | 49.3 | 40 |
| 20MHZ | 9.3 | 25 | 48.8 | 38 |
| 25MHZ | 10.4 | 24 | 45.3 | 36 |
| 31.3MHZ | 11.7 | 23 | 43.0 | 34 |
| 62.5MHZ | 17 | 21 | 39.2 | 28 |
| 100MHZ | 22 | 20 | 36.3 | 24 |
All our products have got the certificates of international authority to guarantee
customers the high quality.
 ISO9001:2015 - NK |  ROHS FOSHAN - NK |  CPR Certificate - NK |  CE Certificate - NK |
We strictly undertake every step of shipping including loading, booking ships,
custom clearance and so on.
 Empty Container |  A Third |  One Half |
 Fill Up |  Close the Door |  Affix Seal |
