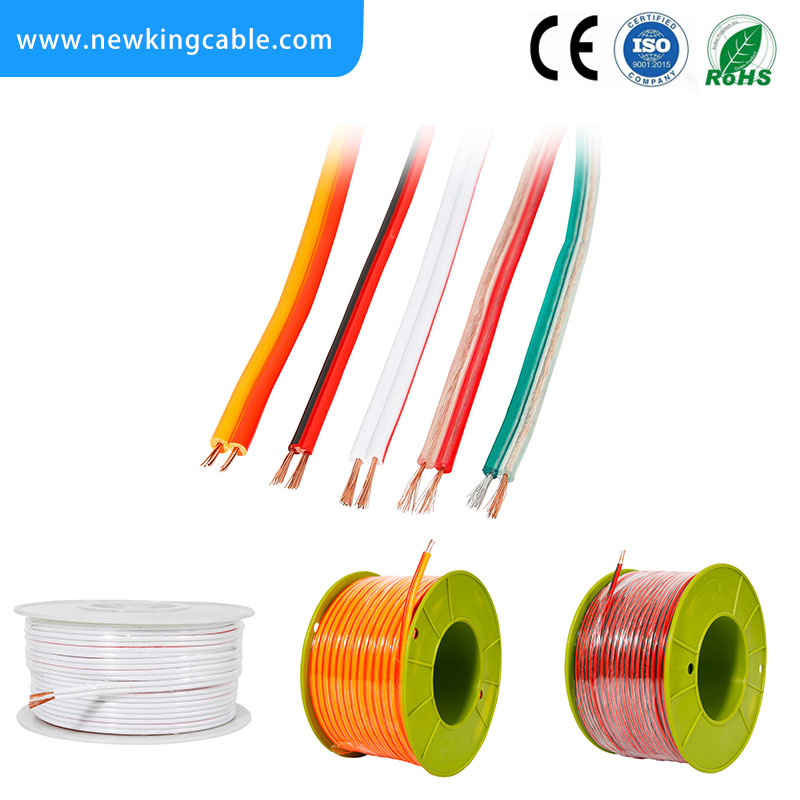

RVB Cable

Overview

Place of Origin : Foshan , China Brand Name : KEXUN，NEW KING or OEM

Model Number : RVB cable Number of Conductors : 8，25 or others

Type : Electrical cable Model : RVB

Supply Ability

Supply Ability : 500 Million Meters per Year, 130 Million Meters per Day

Packaging & Delivery

A) Packing lengths: 100m/roll, 200m/roll, 305m/roll

B) Inner packing: Plastic spool, paper drum, or wooden drum,

C) Outer packing: Carton box

D) Other packing available according to customer

Construction & Performance

Specifications

1. Transparent: PVC,

2. Conductor: Oxygen-free copper, Tinned copper, or CCA, CCS

3. Any guage, any color can be supplied

4. Standard thickness

5. Easy to strip and cut

6. Suitable for Audio Device, Speaker, electrical equipment, power and lighting system

AWG	FEATURE SECTION(mm ²)	NO. OF CENTRAL CON DIA. CONDUCTORS(mm)	OUTER DIAMETER(mm)
4	21	0.12×38×7×7	10
6	13	0.12×24×7×7	7.8
8	8.63	0.12×105×7	6.7
10	5.26	0.12×66×7	5.5
12	3.3	0.12×42×7	4.5
14	2	0.12×26×7	3.5
16	1.3	0.12×16×7	3.2
18	0.75	0.12×66	2.5
20	0.42	0.12×37	2
22	0.25	0.15×14	2
24	0.21	0.15×7	1.6
4	21	0.12×38×7×7×2C	10.00×20.00
6	13	0.12×24×7×7×2C	7.80×15.60
8	7.5	0.12×95×7×2C	6.50×13.00
10	5	0.12×59×7×2C	5.50×11.00
12	3	0.12×37×7×2C	4.00×8.00
14	2.5	80×0.20×2C	4.00×8.00
14	2	64×0.20×2C	3.50×7.00
16	1.5	48×0.20×2C	3.00×6.00
16	1	32×0.20×2C	2.80×5.60
18	0.75	24×0.20×2C	2.50×5.00
20	0.5	16×0.20×2C	2.20×4.40
22	0.35	11×0.20×2C	2.00×4.00
24	0.25	0.12×22×2C	2.00×4.00
26	0.12	0.12×11×2C	1.60×3.20
