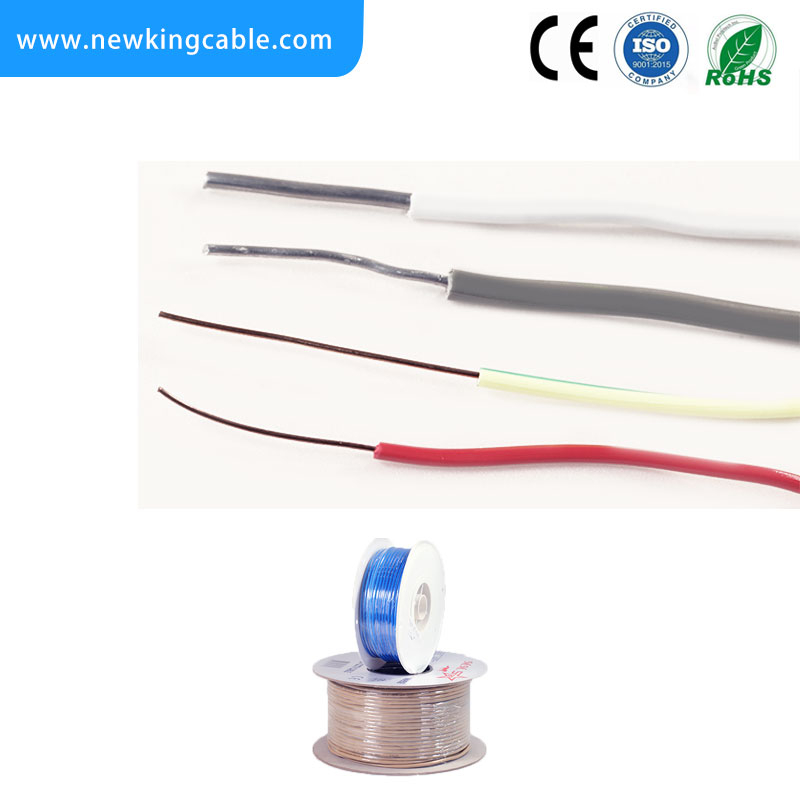

BV Cable Eletric Cable For House Wiring

BV cable is a single core wire with PVC insulation, also known as hard wire.

Various practical types of high-temperature BV electrical cables and wires are available.

Application

BV single core wire is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less.

Specifications

Model	Rated Voltage	Normal area (mm)	Overall diameter (mm)	Weight (KG)	Conductor Resistance rate Not more than at 20 centigrade (Ω/km)	Wire core structure Cores/Diameters (mm)
BV	300/500V	0.5	2.4	8.5	36.0	1/0.80
BV	300/500V	0.75(A)	2.6	11.1	24.5	1/0.97
BV	300/500V	0.75(B)	2.8	12.0	24.5	7/0.37
BV	300/500V	1.0(A)	2.8	13.9	18.1	1/1.13
BV	300/500V	1.0(B)	3.0	15.0	18.1	7/0.43
BV	450/750V	1.5(A)	3.3	20.3	12.1	1/1.38
BV	450/750V	1.5(B)	3.5	21.6	12.1	7/0.52
BV	450/750V	2.5(A)	3.9	31.6	7.41	1/1.78
BV	450/750V	2.5(B)	4.2	34.8	7.41	7/0.68
BV	450/750V	4(A)	4.4	47.1	4.61	1/2.76
BV	450/750V	4(B)	4.8	50.3	4.61	7/1.04
BV	450/750V	6(A)	4.9	67.0	3.08	7/1.35
BV	450/750V	6(B)	5.4	71.2	3.08	7/1.70
BV	450/750V	10	7.0	119	1.83	7/2.14
BV	450/750V	16	8.0	179	1.15	7/2.52
BV	450/750V	25	10	281	0.727	19/7.18
BV	450/750V	35	11.5	381	0.524	19/2.14
BVR	450/750V	2.5	4.2	34.7	7.41	19/0.41
BVR	450/750V	4	4.8	51.4	4.61	19/0.52
BVR	450/750V	6	5.6	73.6	3.08	19/0.64
BVR	450/750V	10	7.6	129	1.83	49/0.52
BVR	450/750V	16	8.8	186	1.15	49/0.64
BVR	450/750V	25	11.0	306	0.727	98/0.58
BVR	450/750V	35	12.5	403	0.524	133/0.8
BVR	450/750V	50	14.5	553	0.387	133/0.68
BVR	450/750V	70	16.5	764	0.268	189/0.68
