BNC Connector For CCTV

Overview

Brand Name：NEW KING; OEM

Number of Conductors : 1

Type : Coaxial

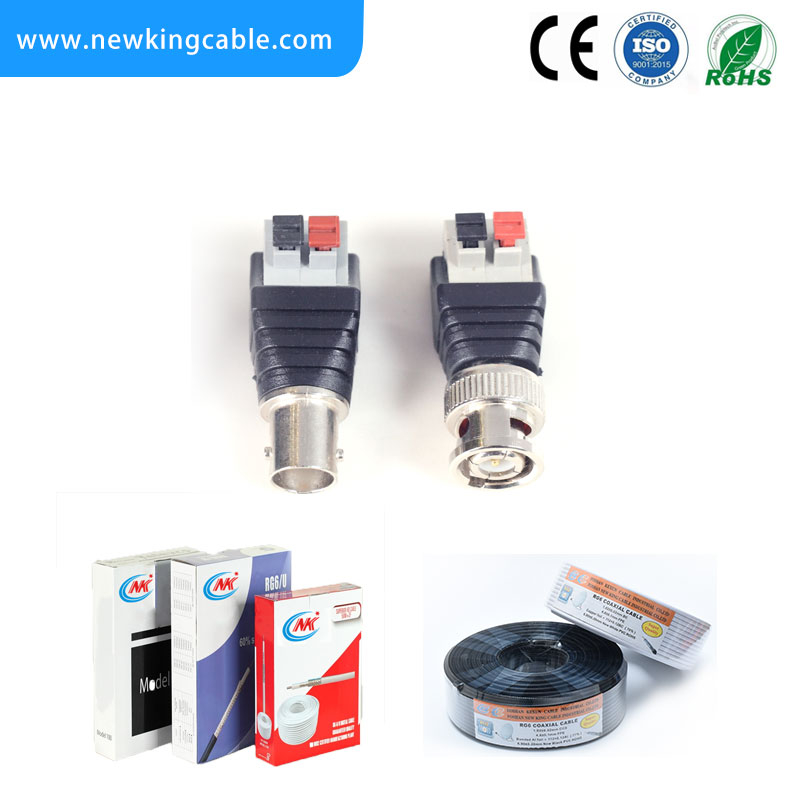

Model : BNC male connector

Certification : CE/RoHS

Inner Conductor : 0.6mm-1.02mm CCS/BC (Bare copper)

Dielectric : 4.57- 4.80mmFPE

Shield : Al Foil/Copper Foil;Boned Al Foil/Copper Foil

Braid Material : Al-Mg, CCA, BC, TC+70%, 90%, 95% Braid

Jacket : 6.0mm-6.8mm PVC/PE

Color:White,Black,Customize

Connector : F connector or BNC

Supply Ability : 500 Million Meters per Year, 130 Million Meters per Day

Packing & Shipping

(1) Packing Lengths: 10m/20m/50m/100m/200m/305m/500m/1000m etc

(2) Inner Packing: Polybag, Blister, Shrink Wrap, Wooden reel, Plastic reel, or Cardboard drum

(3) Outer Packing: Carton box,Pull out box, Pallet available

(4) Other packing available according to clients' request

(5) Usually we deliver our products by SEA-Port：Foshan

Other delivery methods are available upon request from clients.

Application

Construction(Standard Shield)			Diameter(mm)
Item	Material		RG6
Center Conductor	Copper Clad Steel/BC		1.02
Dielectric	Foam PE		4.57
1st Shield	Bonded Aluminum Foil		4.75
2nd Shield	Aluminum Wire Braiding/CCA40%-90%		/
Jacket	PVC		6.80
Electrical Charateristic
Impedance(Ω)			75±3
Capacitance(pF/m)			52±2
Velocity of Propagation(%)			85.0
Shielding Effectivenes
5-1000MHZ(dB)			≥80%
Return Loss
5-1000MHZ(dB)			≥22
1000-2000MHZ(dB)			≥20
Attenuation @68°F.(20 ºC )
@Frequency(Mhz)		Max Attenuation(dB/100m)
		RG6
5		1.90
55		5.25
187		9.35
211		10.00
400		13.61
500		15.29
750		18.54
865		20.01
1000		21.49
1500		26.80
1800		28.90
2200		32.20
3000		37.60
